Details

Published: 03 April 2016

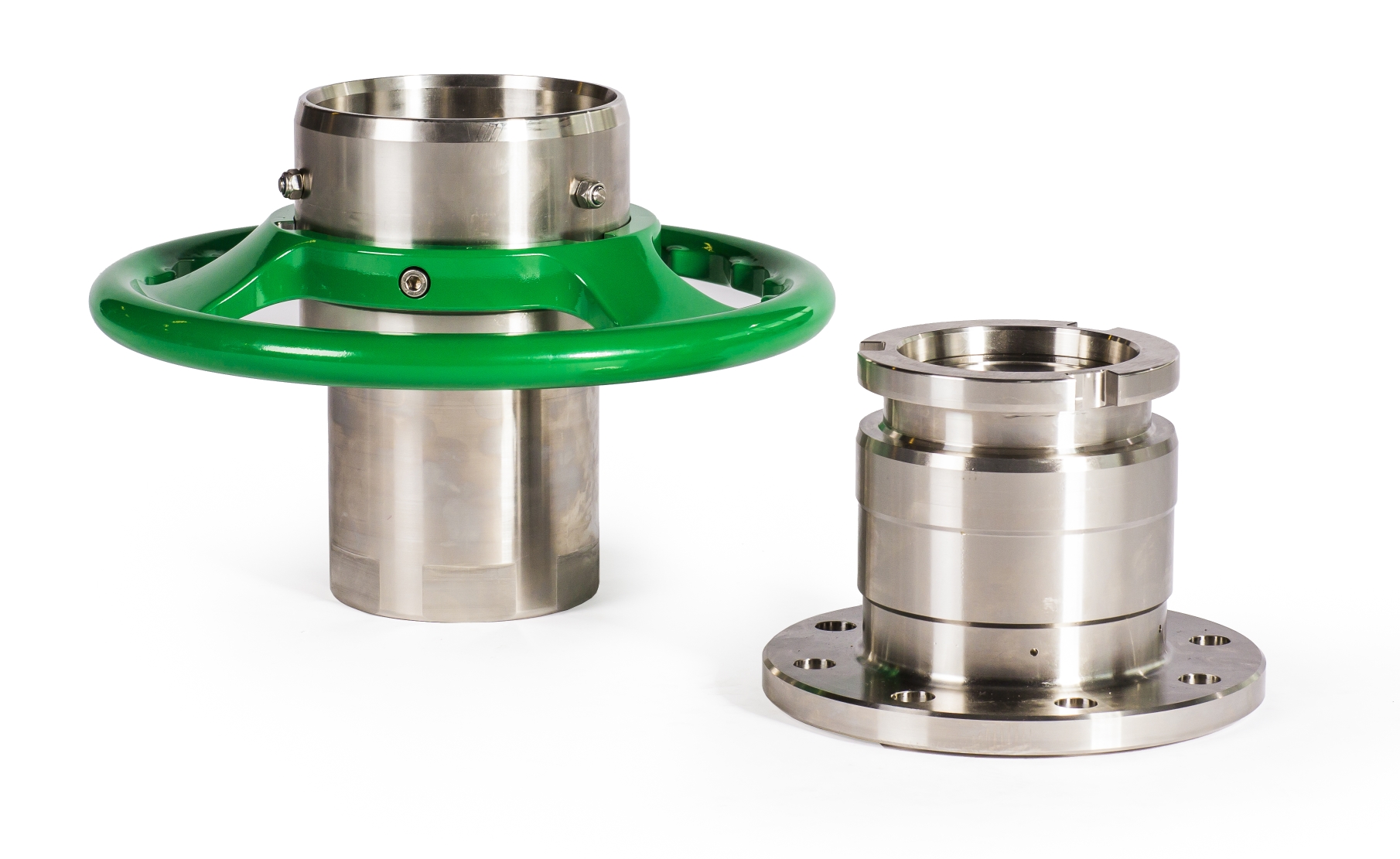

Dry Cryogenic Couplings (DCCouplings) and Cryogenic Break-away Couplings (CBCouplings) are designed for use wherever it’s beneficial to connect and disconnect hoses and pipelines under pressure, quickly without spillage and additional tools.

Dry Cryogenic Couplings and Cryogenic Break-away Couplings are designed primarily for the use of cryogenic liquefied gases, e.g. LNG (-163ºC) and e.g. Nitrogen (-196º), where safety and reliability are of highest concern.

The Dry Cryogenic Coupling consist of a “tank” unit wich is a type of a non-return valve and a “hose” unit with a valve driven by an internal cam curve to open both valves at the same time. Operation is a single action using a straight forward turning motion to connect the couplings and open flow path. An initial push and turn action on the hose unit provides engagement with the tank unit, thus locking and sealing the two units together. Further rotation opening the internal valves, thereby allowing full flow with a minimum of pressure drop.

DCC couplings are available from van 1" to 6" in stainless steel with threaded or flange connections. Working pressure 25 bar (6" 16 bar).

Cryogenic Break-away Couplings are a further development of the Safety Break-away Couplings which has successfully been used to prevent pull-away accidents in the petroleum, chemical and LPG industry all over the world. The new range of Cryogenic Break-away Couplings can be installed either at fixed points or in the middle of hose strings.

Industrial cryogene break away, Typically installed into loading arm and hose assemblies, where at least one side of the coupling is attached to a fixed rigid point.

Marine cryogene break away, Marine Cryogenic Break-away Couplings are designed to only release by inline pull and used between two strings of hose.

CBA couplings are available from van 1" to 6" in stainless steel with threaded or flange connections. Working pressure 25 bar (6" 16 bar).

Questions? Don't hesitate and contact us.

Datasheet Mann Tek Cryogenic Couplings

Read more: Mann Tek - Dry Cryogenic Coupling

Details

Published: 20 January 2016

In december 2015 hebben wij voor onze Goede Doelen Actie onze afnemers benaderd met de vraag een goed doel voor te dragen voor een gift van € 500,-. Dat de actie een succes is blijkt wel uit de vele positieve reacties die we ontvangen, vaak zelfs met mooie of ontroerende verhalen.

Alle medewerkers van Bijl & de Jong hebben punten gegeven aan de voorgedragen doelen. De 10 doelen met de meeste punten krijgen van ons € 500,- overgemaakt.

De goede doelen die wij dit jaar steunen zijn de volgende:

• Stichting Lach voor een dag
• Muskathlon Mariëlle Verhoef
• Zorgboerderij de Kaasdonk
• Dolfijntherapie Esmé
• Mystery Mountain - Stichting Villa Pardoes
• Stichting Make A Wish
• Hospice Dronten
• Stichting Villa Joep
• Muskathlon Jose Joosten
• Zwarte Waterland Helpt - Het vergeten Kind

Wij wensen ze allemaal veel succes met de donatie van € 500,-.

Details

Published: 10 December 2015

Reelcraft LC serie

Profitable reel available in powder coated or stainless steel 304 version. Robust, spring-wound for water and air, mounted on base plate with hose guide.

Guide arm is adjustable in five positions.

Available with or without hose, maximum temperature + 65 ° C.

Poedercoat:

The durable powder-coated reel is available with or without hose.

Models are equipped with hose 20m PVC hose suitable for water and air in 1/2" hose with 1/2" threaded connection or 20 meter 3/8" hose with 1/4" threaded connection.

Stainless steel:

The 304 stainless steel reel is supplied without hose, but can also be supplied complete with hose, suitable for your application.

Download the datasheet of the LC serie

.

Details

Published: 03 December 2015

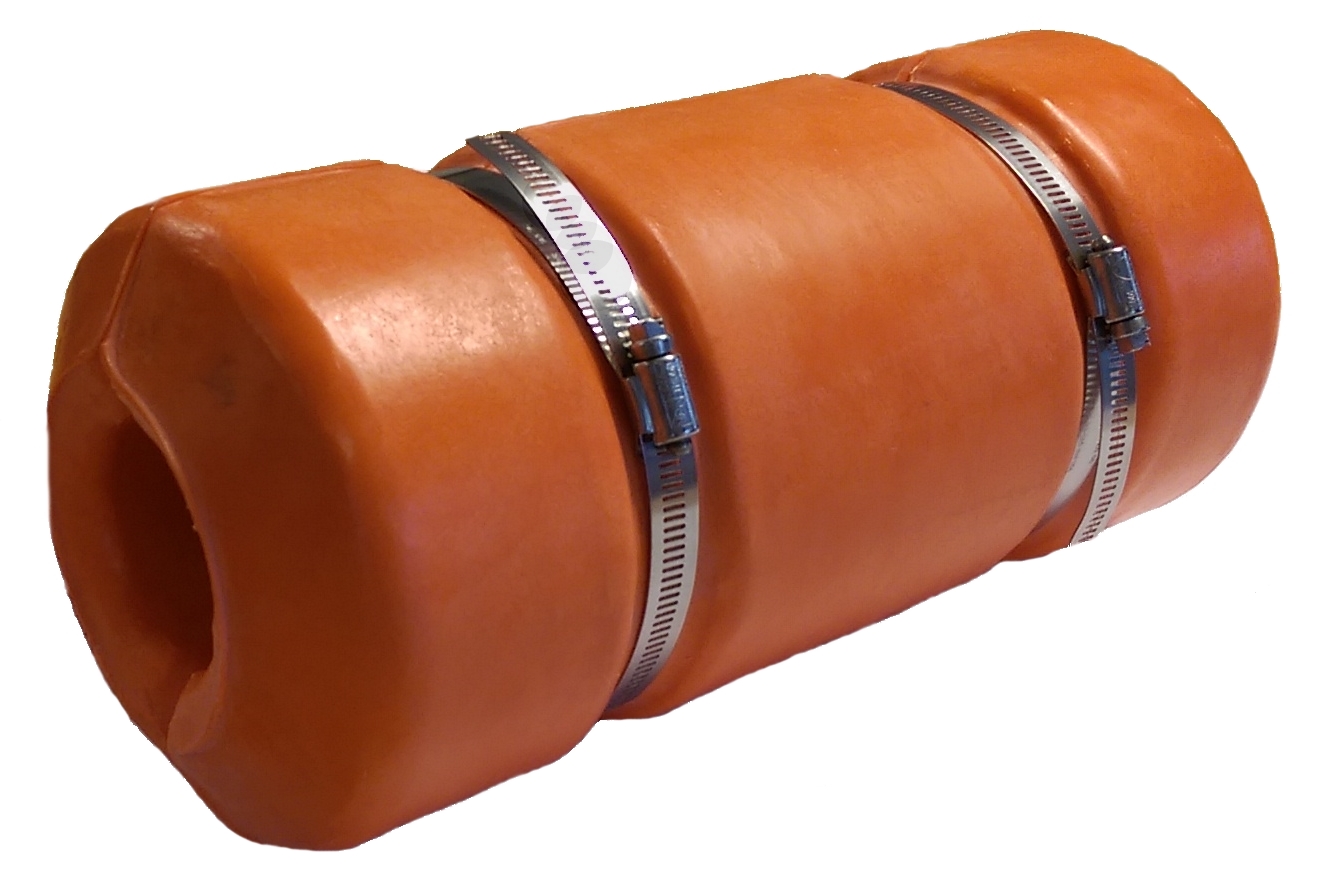

Bijl & de Jong supplies floaters for hose assemblies, cables and pipelines. The floater consists of two shells which are mounted on the hose with stainless steel straps.

The hose floats are molded from a closed cell polyethylene foam that is selectively densified to a solid skin over the entire float surface to enhance toughness, abrasion resistance, and ease of cleaning. UV and oxidation inhibitors are incorporated into the foam for durability end extended life.

Because of the compact execution the floaters are extremely suitable for smaller hose diameters and the possibility to wind it on a hose reel.

Datasheet hosefloats

.

Details

Published: 16 September 2015

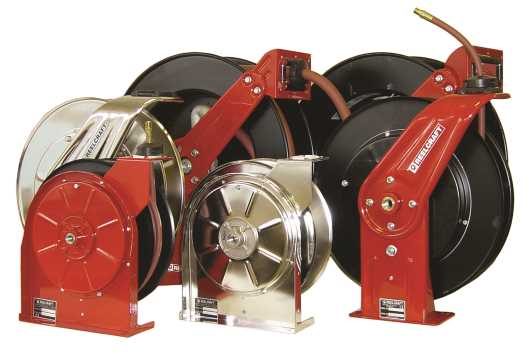

A good reel works efficiently and increases safety in the workplace, because there are no hoses lying around, there is less chance of injury to persons or damage to hoses.

Bijl & de Jong is preferred supplier of Reelcraft hose reels. Reelcraft produces high quality reels that operate smoothly and are very durable.

For every application, Bijl & de Jong has a hose reel available, such as fire fighting, pressure washing, fuel delivery, and for water, air, grease etc.

Reelcraft hose reels are available in different versions, you can opt for powder coating or stainless steel, standard spring return reels or hand crank reels, but the reels can also be supplied with electric, pneumatic or hydraulic motor.

For hazardous areas, all spring wounded, hand wounded or pneumatically driven reels can be delivered in ATEX version.

Download the brochure for more information about the different types of reels Bijl & de Jong can offer you.

No reel for your application? Also a custom-made reel is no problem. Ask for the possibilities.
