Butterfly valves, knife gate valves and ball check valves

Details

Published: Monday, 30 September 2013 14:36

Written by Arjan de Jong





For a number of years now, Bijl & de Jong is the importer for Tecofi valves in the Netherlands.

Tecofi produces a large range of butterfly valves, knife gate valves and ball check valves, but also sells a large range of additional valves.

If it concerns applications with water, biogas, food, oil, gas or chemicals, a Tecofi valve is available.



The butterfly valves can be delivered from stock with GG25 wafer type body, stainless steel disc, EPDM gasket and a hand lever with 10 positions. The valves are produced according the European norm 97/23/CE for liquids cat. 3, module H.

As an option the valves can be supplied with GGG50 body, lug type body, other gaskets or different levers.

The butterfly valves are also available with a double acting pneumatic actuator with connections for a Namur solenoid valve.

Datasheet butterfly valves (dutch)

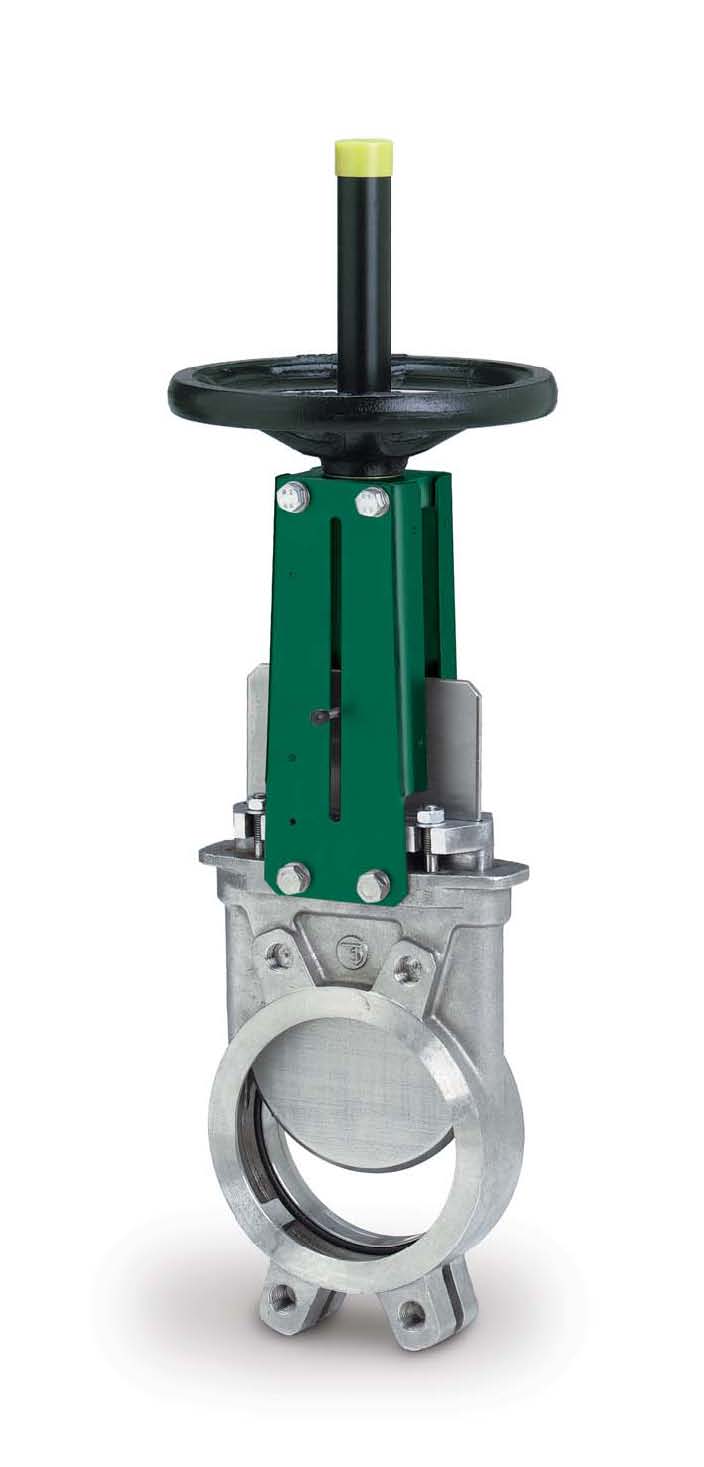

The knife gate valves are equipped as standard with GG25 body, stainless steel knife and NBR seal. The valves are produced according the European norm 97/23/CE for liquids cat. 3, module H and 94/9/CE ATEX group II cat. 2 en 3.

On stock we keep knife gate valves with handwheel and double acting pneumatic actuator, but with a short delivery time also valves with lever, hydraulic actuator, stainless steel body or different seals are available.

As an option a solenoid valve and inductive limit switches can be mounted.

Datasheet knife gate valves (dutch)

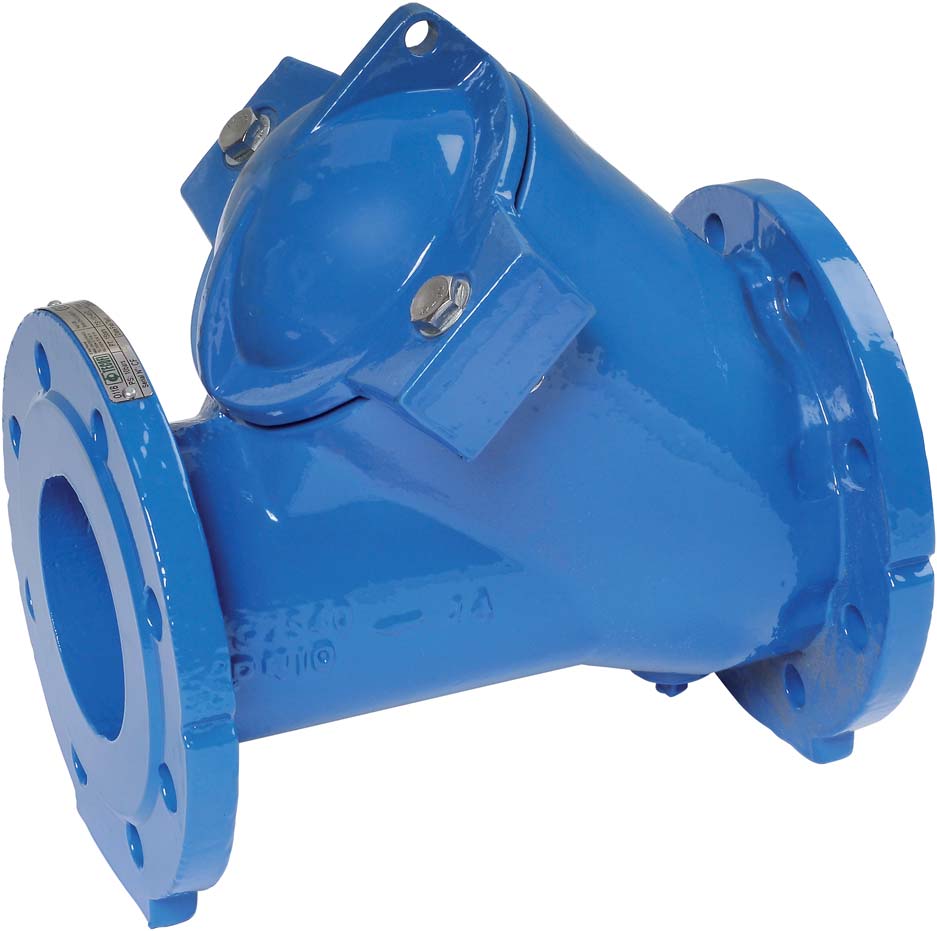

Ball check valves from Tecofi are supplied with a ductile iron body, NBR seals and NBR coated floating ball as standard. The valves are produced according the European norm 97/23/CE for liquids cat. 3, module H and EN12334.

The ball check valves are available with threaded connections or flanged.

Datasheet ball check valves (dutch)
